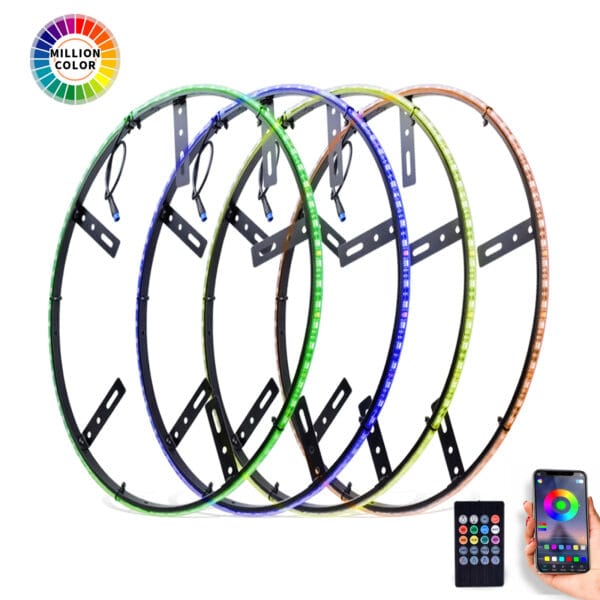

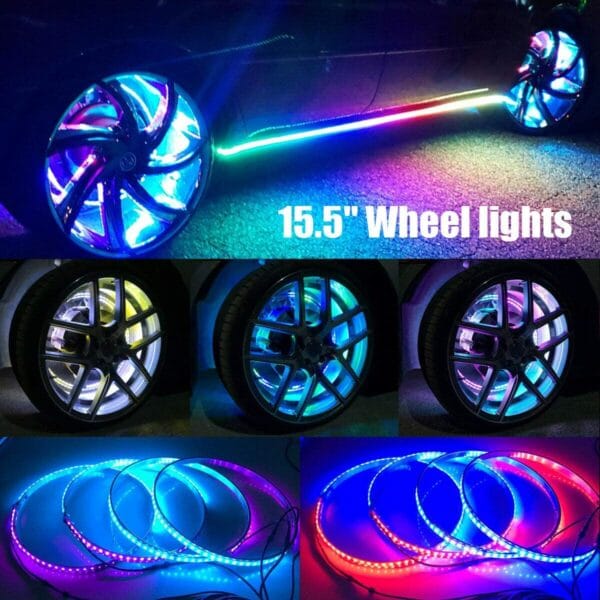

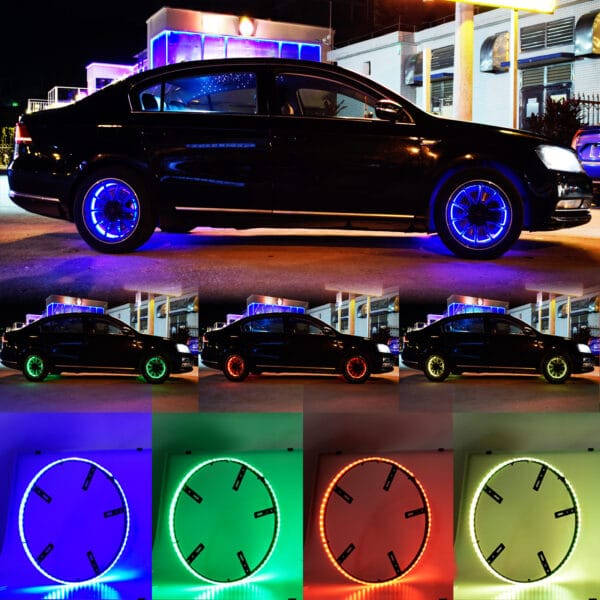

All NEW LED Wheel Light – RGB Multi-Color with Chasing Effect, Dual Controller by Remote or APP.
Bluetooth Controlled via APP, Music Sync feature enables lights to dance with the rhythm of any song in your phone, or with any sound picked up by the microphone.
Inner Diameter of the Wheel Lights Rings is 14.5 inch.
Outer Diameter of the Wheel Lights is 15.5inch.

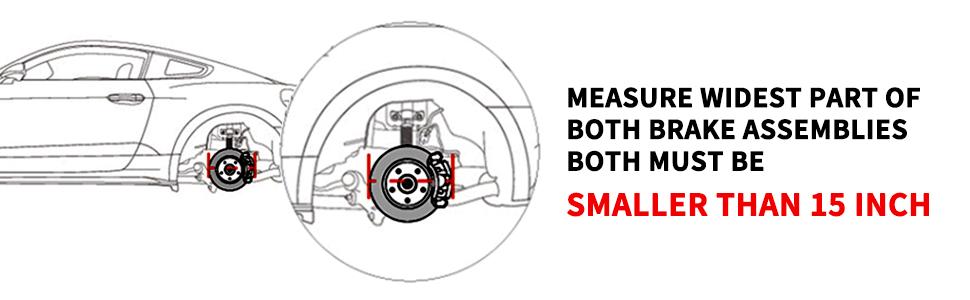

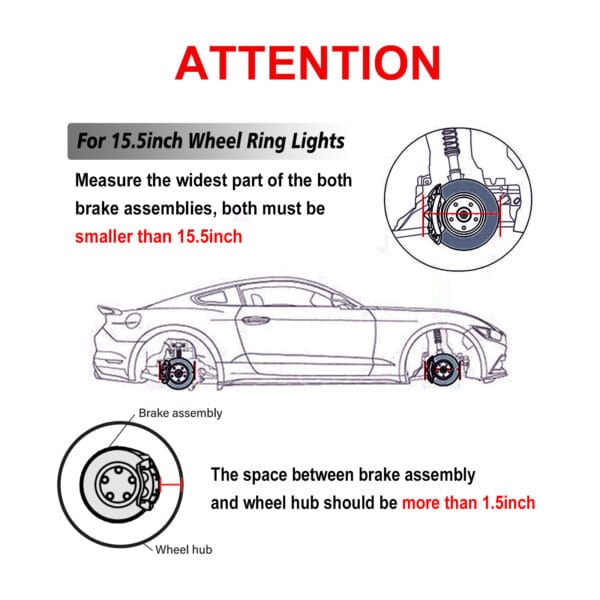

IMPORTANT: Wheels have to be 17 inch or larger. The rotors MUST be equal or less than 13 inches 330mm.

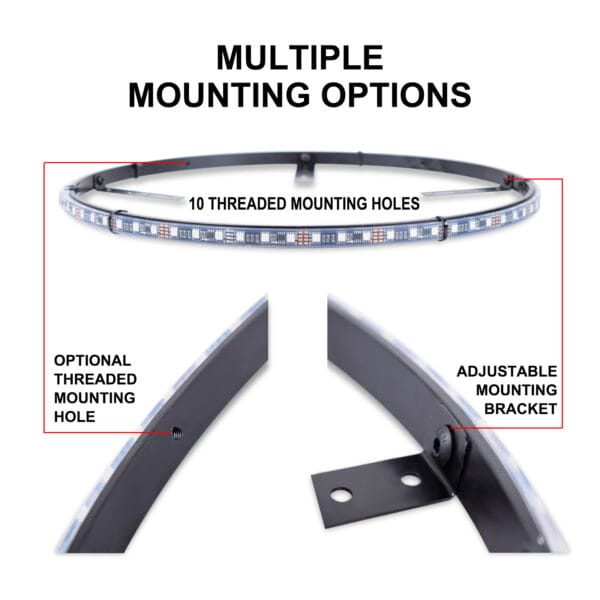

IMPORTANT: Drilling is required, these mount to the dust cover shield behind your rotor.Tech Specs
Light power consumption: 6W per ring with RGB full on.
Input voltage: 12V
Sensor wire input voltage: 12V
Reversed polarity protection: Yes.
Transient voltage suppression: Yes.
Wiring Connection Advice:
Please Connect the Positive to the ACC directly, and connect the negative to the Ground wire, Don’t need any fuse. if you use the improper fuse may cause problem.
The red line is connected to the positive pole, the black line is connected to the negative pole, the yellow line is connected to the brake light, when you brake, light will turn red.
There is a QR code on the wire harness, scan and install the App, turn on Bluetooth to search signal,
Will show the connection is successful and you can change your color. Here is 3 pic about this app controlling.
Please kindly Contact us at once When You Meet Any Problem.
Providing Pictures and Videos Will Help us Fix the Problem Sooner.
