This item is for one Set HID Bi-Xenon Relay harness. A bi-xenon relay is designed only to be used with bi-xenon (dual beam) hid bulbs. This Relay Harness has two connector that connects to both side of your headlight. The purpose is to control the switching of your high and low beam functions.
The harness connects to the vehicles factory OEM socket and does not require any cutting or splicing, using the OEM connections will allow you to turn on and off your headlights as well as high/low switching using your factory light switch.

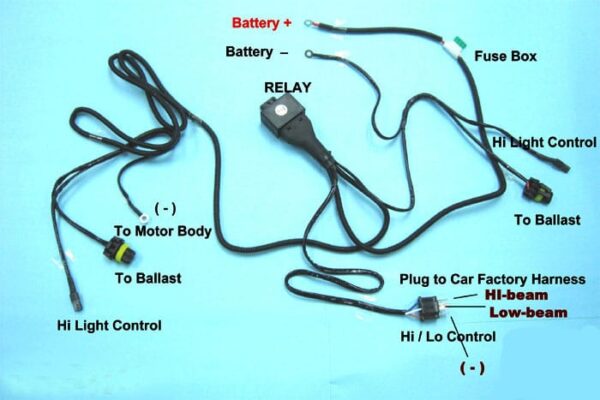

Installation Instruction :
- Connect red wire straight to the battery positive pole.
- Plug in long and short male connectors into the right and left side ballast.
- Connect the small rectangle wire to the HID light bulb.
- Plug in the last single female connector to one of your cars/trucks stock headlight connector.
|Model:||Bi-Xenon Hi/Lo HID Relay Harness|
|Size Available:||9007, H13, H4|
|Wattage:||35W / 55W|
|Input voltage:||DC 9-16V|
|Working temperature:||-25°C to 40 °C|
|Working lifetime:||>3500 hours|
